Ultimarc iPAC-2 box

Summary

I’ve come across a few bumpers for the iPAC-2 Keyboard encoder, but I wanted an actual box. Not being able to find one, I drew my own.

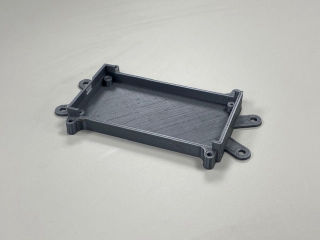

Designed in two parts, the base can be printed in a different color, adding to the excitement.

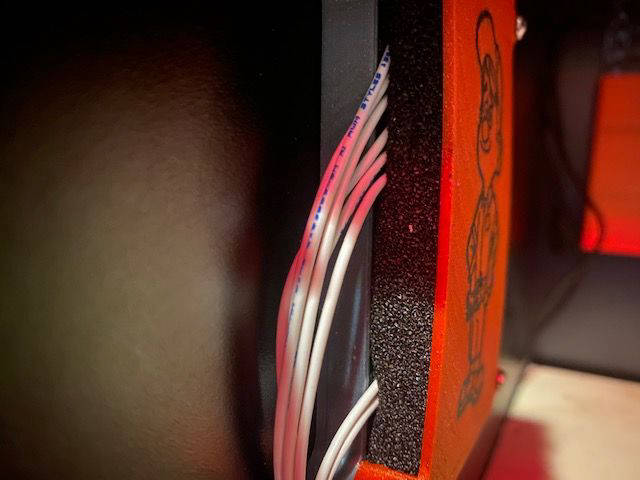

To add a degree of wire relief, I used a piece of expandable weather-stripping to fill the gap, molds to the wires, and seals the box more.
This can be used with or without the shown weather-stripping

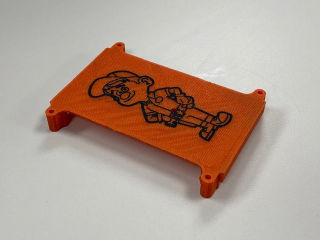

My application was for my Fix it Felix machine, so an STL of Felix is also included if you would like to include his likeness into your print. An embossed version is also downloadable for a Fix it decorated cover for single extruder printers.

Assembly Instructions

Non-Printed Parts


iPAC2 ModuleI-PAC 2 Arcade Game Controller Interface with USB Cable Shop for this item
WeatherstripFrost King 1 in. x 13 ft. Expanding Foam Tape Weatherstrip Shop for this item
#4 x 3/4"#4 Phillip Pan Head Sheet Metal Screws 18-8 Stainless Steel (Box of 100)Shop for this item
#2 x 5/16"Pan Head Sheet Metal Screws, Stainless Steel 18-8, Full Thread, Bright Finish,  Quantity 250Shop for this item

Printer Settings

Printer Brand:Flashforge
Printer:Dreamer Dual ExtruderShop for this item
Nozzle Used:Micro Swiss .4mm Nozzle MK10 All Metal Hotend Upgrade KitShop for this item
Rafts?No
Supports?Recommended in the vent hexagon area
Infill35%
Shown Printed in Filament  Color Solutech Real Black 3D Printer PLA Filament 1.75MM  PLA175RBLK Shop for this item
Shown Printed in Filament  Color Proto-Pasta Tangerine Orange Metallic Gold HTPLA, 1.75mm 500g Shop for this item
Shown Printed in Filament  Color Solutech Silver Metal 3D Printer PLA Filament 1.75MM PLA175TCMS Shop for this item
Shown Printed in Filament  Color Dremel DF07-01 PLA 3D Printer Filament, 1.75 mm Diameter, Green Shop for this Item
Shown Printed in Filament  Color Dremel PLA 3D Printer Filament, 1.75 mm Diameter, 0.5 kg Spool, Blue Shop for this item

Post printing

Attach the weather-stripping if you have chosen that path. Secure top to base with the #4 screws and the #2 screws for the PCB to the base

About the Design

This design, as well as previous designs, was done in Autodesk’s free 123D design. This is now an abandoned piece of software, that I am still very proficient in. You can download its last revision for Windows (2.2.14) here, but understand that the online cloud storage option no longer works.

The .123dx file may contain sketches, solids, or both needed to render the final STL. and is included to ease part modification for your purpose.

Downloads

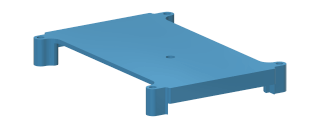

IpacTop.stl

Download

The STL file for slicing

EmbossedTop.stl

Download

The STL file for slicing with an embossed likeness of Felix

IpacTop.123dx

Download

The STL file for slicing

IpacTop-WFIF.123dx

Download

The Autodesk 123D Design file that generated this part With Fix it Felix

Filexinsert.stl

Download

The STL file for slicing

Ipac-Base.stl

Download

The STL file for slicing

IpacBase.123dx

Download

The Autodesk 123D Design file that generated this part

Zip Package

Download

ALL file and pictures
