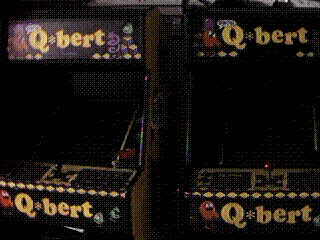

The pair at purchase.jpg
12.2 KB


Dirty sides.jpg
8.4 KB


Scrubbing bubbles.jpg
14.6 KB


Looking cleaner.jpg
7.5 KB


53.0 KB


Flipped Plug.jpg
32.1 KB


Additional heatsink.jpg
37.0 KB


Moved Battery.jpg
41.3 KB


New control panel overlay installed.jpg
41.2 KB


Swearing marquee.jpg
22.3 KB


New Over-Under door.jpg
34.0 KB


Title screen.jpg
24.4 KB


Screen Shot.jpg
33.8 KB


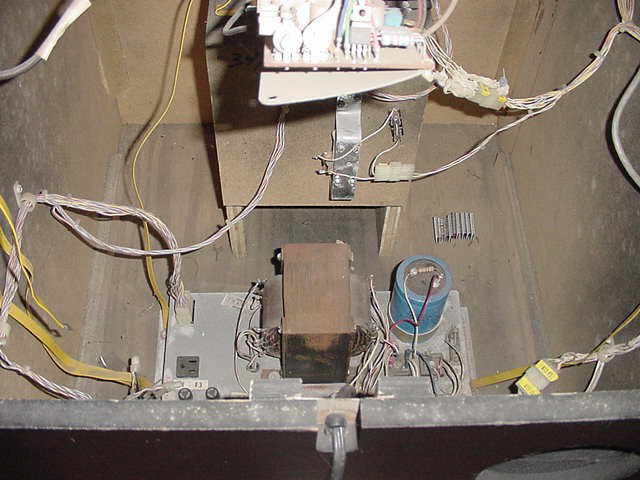

Main Xfmer.JPG
39.0 KB


38.3 KB


left side.jpg
31.8 KB


Right side.jpg
26.3 KB

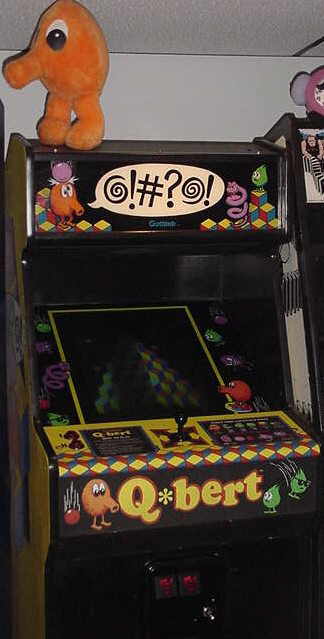

Qbert in the Basement Arcade.jpg
25.0 KB



    SLICKSo what's your story?

    Q*Bert was always one of my arcade favorites. Looking back on things, I would guess that this was due to the fact that I could get allot of playtime for my quarter.
    When I started collecting, It seemed only natural that A Q*bert should be in the collection. I was lucky enough to get not one, but two machines!
    As part of a bulk buy of 8 machines, two non working Q*berts were included. Both were complete and in solid B shape with great side art on one and the other 90% complete. Both control panels were in the same shape, poor, but both monitors worked. The seller also tossed in a "spare" Q*bert CPU board, but it turned out to be a Krull board instead.
    Wrong!The Restoration

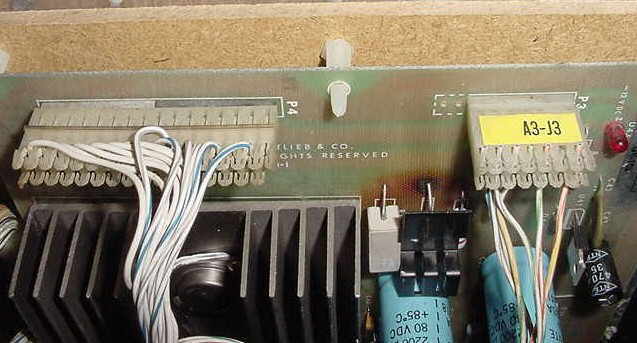

    With both machines tucked into the shop the work began. First job was to get these babies working again. With the manual spread across the workbench, (yes, one manual was still in the machine) and a volt meter in my hand, It was quick to see that the power supply on both machines was not giving out all the voltages the game needed. With another trip out to the electronics store, I came back with everything to replace all the burnt looking components as well as the transistors and electrolytic caps which should replaced anyway due to their age. The Operator that sold me these machines was nice enough to toss in a spare CPU board. but as luck would have it, both boards would be found working after the power supplies were rebuilt. Now, This is a simplified version of 3 weeks of electrical torture troubleshooting. Let me explain. In hopes that someone reading this will not repeat the mistake I made. Look at the picture here. This is a shot of of the wiring on the Q*bert boards. Common practice would be to place all the connector with the stickers the same side up. But connector P4 off the Power supply board gets flipped over. If I would have sat down and studied the wiring diagram (like I finally did , determining my problem) I would have saved myself lots of aggravation! If this connector is flipped sticker side up , making a match too all the the other plugs), the main CPU board in will short out the 5 volt line right to ground and pop the fuse.

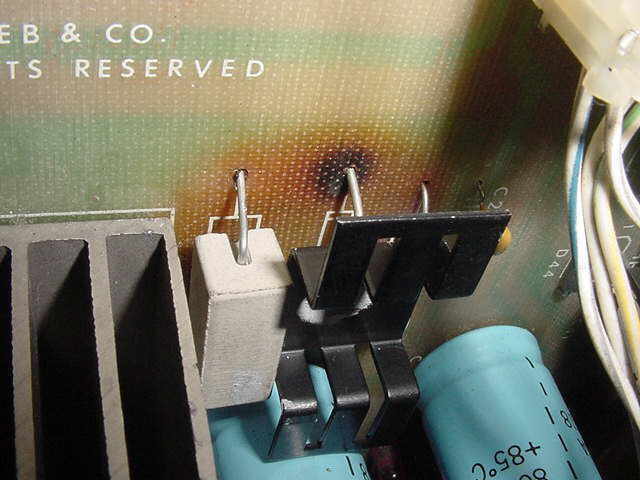

    Next time ill spend more time analyzing WHAT I am do rather then just pulling my hair out saying 'why doesn't the fuse pop until I plug the CPU board in?' As and additional preventive measure, I now add additional heat sinks to these power boards when I rebuild them. As you can see from the picture, The heat from this diode, scorched the board. With some thermal glue, The now attached heatsink lightens the thermal load a bit.

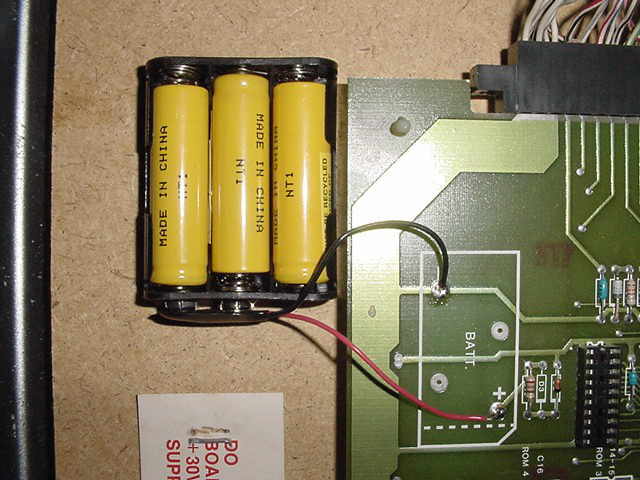

    Anyway with two working boards, I put in the extra CPU board the Op gave me only to find the it was a Krull board and not Q*bet at all. The last piece of work on the boards was to remove the rechargeable battery, and off locate it to prevent battery puke from dumping all over the boards.


    More restoration was needed in the rebuilding the "Knocker" for when Q*bert falls off the pyramid. Both units had them present but both were rusted solid. Finally, before we buttoned up the back, the inch thick layer of mold inside in the case was removed.

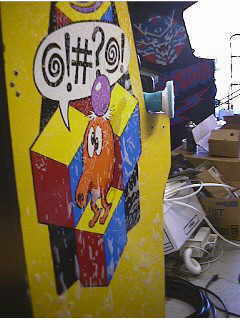

    A good case scrubbing is always in order so Q*berts was scrubbed and cleaned. Unfortunately, at this point is were the Q*bert twins were separated. One stayed with me to be prettied up more and the other left for an auction in South Jersey
    With only one machine left, more machine changes took place. A new control panel was purchased and installed improving the machine appearance 100%. Other changes were the swapping of the marquee, from the standard marquee to the rarer Swearing Marquee pictured to the left.
    On a side note and a piece of history, the "swearing" marquee was originally to be the header of choice until no one knew what to call the game. I mean, how do you pronounce @!#?@! ? Needless to say Gottlieb chose to shrink the swear bubble and add the Q*bert name to the marquee The small remaining "swearing only" marquees are now sought after by collectors.

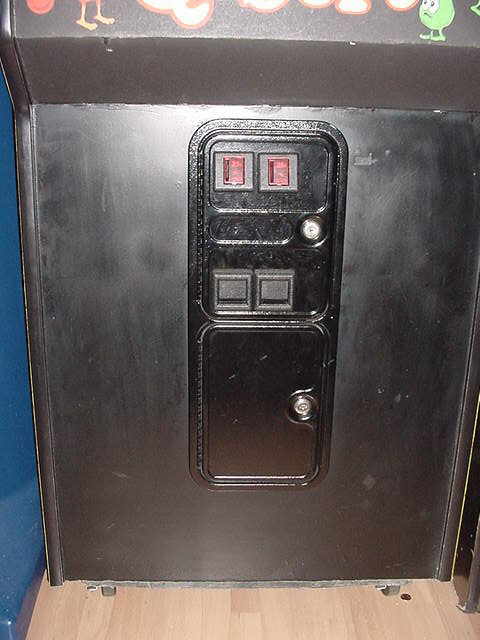

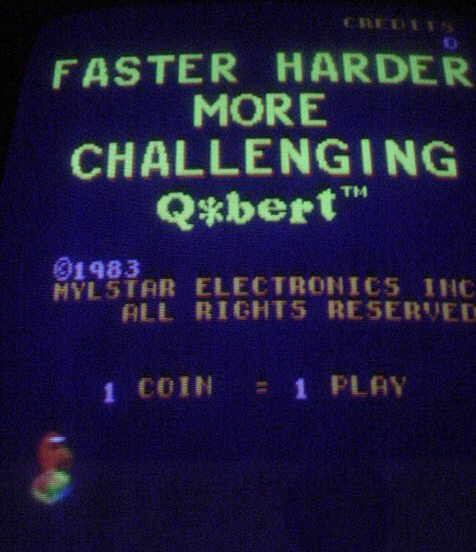

    The coin door was hopelessly mangled so I bought a new one and the marquee bulb was replaced. About this time I made my final modification. There was a sequel to Q*bert named, FHMC Q*bert. FHMC actually stands for Faster, Harder, More Challenging. Faster Harder More Challenging Q*bert was programed by Mylstar but never went into production and no dedicated cabinets are known to exist. This game is just like Q*bert except the platforms shift position and there are bonus rounds after levels two and five. And, as the name implies, it is faster and harder :-). We also see Q*Bertha for the first time which is another "badie" you need to avoid!

Do you have a Q*bert arcade game and need some of it's technical information? Visit the library for the full manual. Click Here for the Pin-out wiring page.
